PLC Integration Basics: Matching Sensors & Signals (PNP/NPN, Analogue, Pulse & Encoders)

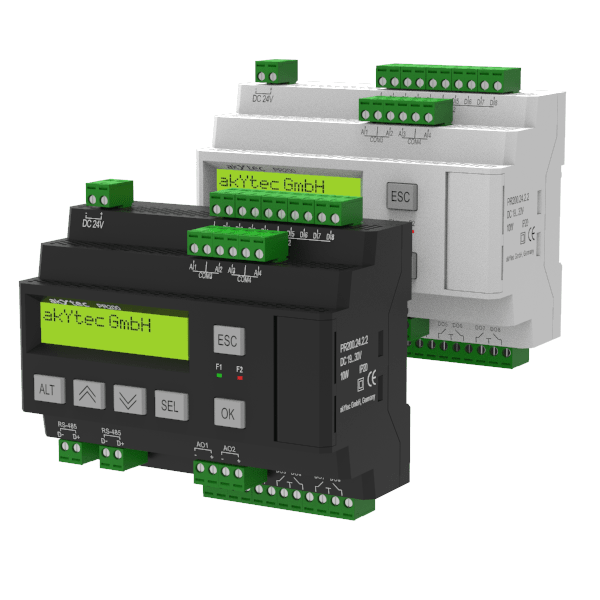

Why PLC integration causes “invisible failures”

In industrial automation, sensor selection is only half the job. The other half is making sure the signal is compatible with the PLC input and correctly wired, filtered, and protected in the real environment.

Many “sensor failures” are actually integration failures:

  • The sensor triggers (LED changes) but the PLC never sees it
  • The PLC sees random flicker (electrical noise, poor grounding)
  • The value is wrong (analogue scaling mismatch)
  • The counter loses pulses (wrong input type or insufficient high-speed capability)

This guide breaks down the most common PLC sensor signal types – digital PNP/NPN, analogue (4–20mA / 0–10V), and pulse/encoder signals—and explains how to match them to PLC inputs reliably.

Step 1: Know your PLC input “menu” (what the PLC can actually accept)

Before looking at sensor datasheets, identify which PLC inputs you have available:

Common PLC input types:

  1. Digital Inputs (DI) – on/off signals
  2. Analogue Inputs (AI) – continuous measurement (level, pressure, temp, flow)
  3. High-Speed Counters (HSC) – pulse counting (encoders, RPM, flow pulses)
  4. Specialty Modules – e.g., RTD/thermocouple modules, IO-Link masters, etc.

Practical tip: If your PLC doesn’t have a high-speed counter input, do not assume a normal DI can count reliably at high frequency. It might work on a test bench and fail on the line.

Step 2: Digital sensors – PNP vs NPN (the #1 mismatch problem)

What PNP and NPN mean in plain terms:

  • PNP (sourcing): the sensor output provides +24V to the PLC input when active
  • NPN (sinking): the sensor output pulls the PLC input down to 0V when active

If your PLC input is wired/configured for one type and you connect the other, you can get:

  • no triggering at all
  • “always on” signals
  • unstable switching

Quick diagnostic (field test):

  • If the sensor has an LED and it changes state, but the PLC input never changes, suspect:
    wrong PNP/NPN pairing
    missing common reference (0V/COM)
    wrong wiring / wrong pinout on connector

Best practice (to reduce plant-wide faults):

  • Standardise your plant by area or project: choose PNP or NPN consistently
  • Label sensors at installation: “PNP” or “NPN”
  • Keep a one-page wiring cheat sheet inside each panel door

Recommended Products:

Step 3: Digital sensor wiring fundamentals (3-wire sensors)

Most industrial proximity and photoelectric sensors are 3-wire:

  • Brown = +24V
  • Blue = 0V
  • Black = Output

But always confirm in the datasheet—do not assume, especially across brands.

Common wiring mistakes:

  • Output wire landed to the wrong terminal due to inconsistent colour coding
  • “0V” not properly bonded across sensor supply and PLC input common
  • Using the wrong connector pinout (M8/M12) across different sensor families

Recommended Products:

Step 4: Analogue sensors – 4–20mA vs 0–10V (and why scaling breaks everything)

Analogue sensors are common for:

  • pressure / vacuum
  • flow
  • level
  • temperature and humidity

But they generate the most “silent errors” because the PLC shows a number—it’s just the wrong number.

4–20mA vs 0–10V: which is more robust?

  • 4–20mA is generally more noise-resistant over long cable runs and is widely used in industrial plants.
  • 0–10V can be simpler but is more sensitive to voltage drops and noise, especially over long distances.

The two most common analogue issues:

  1. Wrong range configured in PLC
    • Sensor outputs 4–20mA but PLC is configured for 0–10V
    • Result: flatline, wrong readings, or out-of-range alarms
  2. Scaling errors
    • Example: sensor range 0–10 bar, but PLC scaling assumes 0–16 bar
    • Result: wrong process decisions, false alarms, poor control

Analogue scaling checklist:

  • Confirm sensor output type (4–20mA or 0–10V)
  • Confirm sensor range (e.g., 0–10 bar; 0–100°C)
  • Set PLC input range correctly
  • Map input counts/engineering units correctly in the program/HMI
  • Validate with a known reference where possible

Recommended Products:

Step 5: Pulse, speed, and encoder signals (where “normal DI” often fails)

If you’re measuring RPM, rate, or position, you’re in pulse territory:

  • Rotary encoders
  • speed sensors
  • pulse-output flow meters/switches (depending on model)

The key question is: How fast are the pulses?
If the pulse frequency exceeds what a standard DI can reliably capture (especially with input filtering), you need a High-Speed Counter (HSC) input or a dedicated device.

Common pulse integration mistakes:

  • Counting pulses on a standard DI with too much input filtering
  • Long cable runs without shielding or correct grounding
  • Wrong input type for encoder output (HTL/TTL/etc.)
  • Noisy signals due to routing near motor/VFD cables

Recommended Products:

Step 6: Practical noise reduction for sensor signals (especially near VFDs)

Noise is a major cause of input flicker, missed pulses, and phantom triggers.

Common noise sources:

  • Variable frequency drives (VFDs)
  • contactors and coils
  • long parallel runs with power cables
  • poor earthing/bonding

Best practices:

  • Route sensor cables separately from power cables
  • Use shielded cable where appropriate
  • Ground shields correctly (commonly one end)
  • Add ferrites or filtering if needed
  • Check PLC input debounce/filter settings
  • Ensure 0V reference is stable and correctly bonded

Quick Clue: If the signal fails when a motor starts or a VFD ramps up, it’s probably noise, not the sensor.

Step 7: When to use a panel meter/controller alongside (or instead of) the PLC

Sometimes the plant doesn’t need a full PLC change or a new module. A compact meter/controller can solve:

  • local RPM display
  • counting and totals
  • local operator visibility
  • simple retrofits on OEM skids

JR-D (6-Digits) – counter/tachometer use cases

JR-D is a compact 1/8 DIN digital meter suitable for counting and tachometer applications (RPM/rate), and supports multiple input types. This can be useful when you need a reliable local display and stable pulse handling.

Where JR-D typically fits:

  • Conveyor speed monitoring (RPM/rate)
  • Batch counting and production totals
  • Maintenance counters (cycles/strokes)

KAPPA-M Dual Input — dual-signal monitoring / process maths

KAPPA-M Dual Input supports two analogue inputs and is useful where you want to monitor or integrate signals (and in some configurations perform arithmetic between inputs).

Where KAPPA-M typically fits:

  • Comparing two analogue measurements (e.g., upstream/downstream)
  • Totalising/integrating a process variable over time (application dependent)
  • Local display and process monitoring where PLC upgrades are not immediate

Recommended Products:

Step 8: Quick selection table – match sensor output to PLC input

What you need to measure

Typical device

Output type

PLC input type needed

Common failure

Presence of metal

Proximity sensor

Digital PNP/NPN

DI (wired correctly)

Wrong PNP/NPN / pinout

Counting bottles/products

Photoelectric

Digital PNP/NPN

DI or HSC (if fast)

DI too slow / misalignment

Pressure, level, flow

Transmitter/sensor

4–20mA / 0–10V

AI

Wrong scaling/range

RPM / speed

Encoder / speed sensor

Pulse (HTL/TTL)

HSC

Missed pulses / noise

Position confirmation

Limit switch

Dry contact

DI

Mechanical alignment

Request a PLC Compatibility Check
Send: PLC model + sensor type + output (PNP/NPN/4–20mA/0–10V/pulse) + distance + environment.

Get the Sensor Integration Checklist (PDF)
A quick reference for wiring, scaling, and noise prevention.

Recommended products for this application:

FAQ

1) How do I know if my sensor is PNP or NPN?

Check the sensor label/datasheet and wiring diagram. If you’re unsure, test the output with a meter (safely) while switching the target and observe whether the output sources +24V (PNP) or sinks to 0V (NPN).

2) Why does the sensor LED switch but the PLC input doesn’t?

Most common reasons: wrong PNP/NPN pairing, missing common reference (0V/COM), wrong connector pinout, broken cable, or PLC input configured incorrectly.

3) What’s better: 4–20mA or 0–10V?

4–20mA is generally better for long cable runs and noisy environments. 0–10V can be fine for short runs with good cable management and grounding.

4) Why do I lose encoder pulses?

A standard DI may be too slow, or filtering may be too high. You may need a high-speed counter input, better shielding, improved routing away from VFD cables, or correct encoder signal type compatibility.

5) Do I always need a PLC for speed and count applications?

Not always. For local readouts or simpler applications, a panel meter/controller (e.g., JR-D) can provide reliable counting or RPM monitoring without PLC changes. (Always confirm compatibility to your input signal type.)

Conclusion: Integration is the difference between “works” and “works reliably”

The right sensor is only effective if the PLC can interpret its signal correctly. Standardise your signal types, validate PNP/NPN and analogue scaling, use high-speed counting where needed, and protect signals from noise. Doing this consistently reduces downtime, callouts, and “mystery failures.”

If you want, send your application details and we’ll recommend a robust, compatible sensor and wiring approach for your PLC and environment.
